Name:Vacuum circuit breaker
FOB Port:Ningbo/Shanghai/Yiwu/Guangzhou/Shenzhen
Terms of Payment:T/T
Tel: +86 13706784523(Whatsapp)/
Email: amy@putai-electric.com /
Name:Vacuum circuit breaker
FOB Port:Ningbo/Shanghai/Yiwu/Guangzhou/Shenzhen
Terms of Payment:T/T

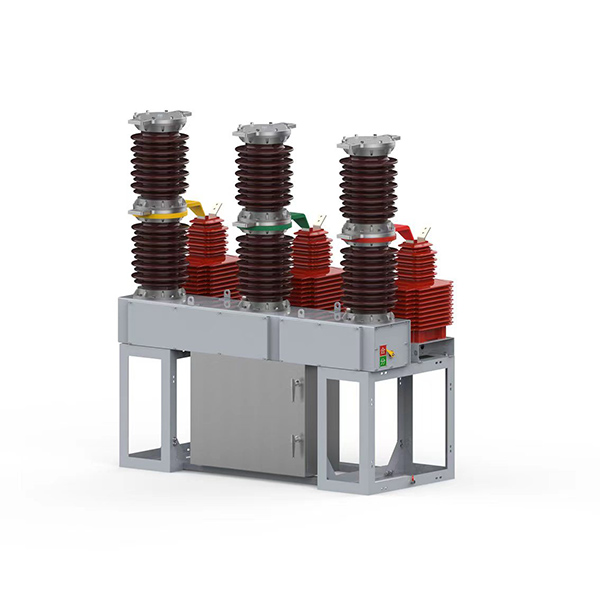

ZW7A outdoor high-voltage AC vacuum circuit breaker is a three-phase AC 50Hz, rated voltage 40.5K outdoor device for industrial and mining enterprises, power plants and substations for the control and protection of electrical equipment, especially for frequent operation of the place.
ZW7A outdoor high-voltage AC vacuum circuit breaker is reliable, easy to install, is the best choice for control and protection of high-voltage transmission and distribution system.
| Item | Unit | Reference value | |||
| Rated Voltage | kV | 40.5 | |||
| Rated insulation level | Lightning impulse withstand voltage | kV | 185 | ||
| 1min frequency withstand voltage | kV | 95 | |||
| Rated frequency | Hz | 50/60 | |||
| Rated current | A | 1250/1600/2000/2500 | |||
| Rated short-circuit breaking current | kA | 20/25/31.5 | |||
| Rated short-circuit closing current (peak) | kA | 50,63,80 | |||
| Rated short-time withstand current | kA | 20/25/31.5 | |||
| Rated peak withstand current | kA | 50,63,80 | |||
| Rated operating sequence | 0-0.3s-CO-180s-CO | ||||
| Rated short-circuit duration | S | 4 | |||
| Rated short-circuit current breaking times | Time | 30 | |||
| Mechanical life | M2级 | ||||
| Quality | kg | 1000 | |||
